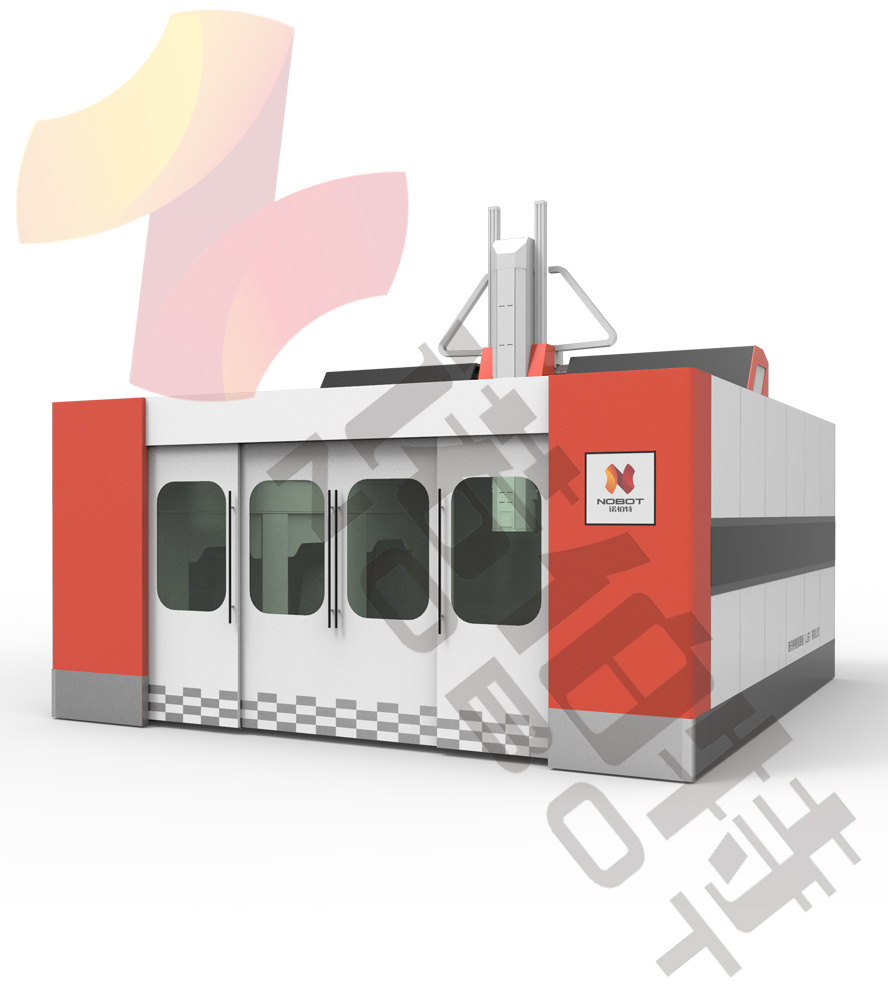

DQF series fully enclosed high-speed five-axis gantry machining center
Product Features: ◆The machine tool adopts a moving table working method, with an integrated welded bed, compact structure, and advanced mechanical/electrical components, ensuring high machining feed speed, high machining efficiency, high rigidity, and high reliability. ◆It adopts a five-axis control system, opens the RTCP tool following function, and can machine multiple complex surfaces at one time. ◆It uses an Italian-made electric spindle and is equipped with an 8-station disc-type tool magazine. ◆Equipped with a tool measuring system for automatic measurement of tool length and re-calibration of A/C coordinate accuracy.
Keywords:
Details Description
I. General Introduction:
The DF series five-axis machining center adopts an advanced gantry-type mobile structure, possessing the excellent milling technical characteristics of a high-speed milling machine. The mobile worktable ensures the machine tool has optimal dynamic motion characteristics and optimal drive rigidity. The worktable moves smoothly in the axial direction. During processing, the five axes drive the tool movement, machining around the workpiece to achieve five-axis linkage three-dimensional movement. The dual worktable allows for uninterrupted production processing, with one worktable being machined while the other is loaded.
II. Product Features:
◆This machine tool adopts a worktable-moving working method, with an integrated welded bed, compact structure, and advanced mechanical/electrical components, ensuring high processing feed speed, high processing efficiency, high rigidity, and high reliability.
◆It adopts a five-axis linkage control system, enabling RTCP tool following function, allowing for one-time processing of multiple complex surfaces.
◆It uses an Italian-made electric main spindle and an 8-station disc-type tool magazine.
◆Equipped with a tool measuring system for automatic measurement of tool length and precision recalibration of A/C coordinates.
◆Gantry mobile bed structure, flexible and efficient; the open gantry facilitates heavy loads and loading/unloading of large workpieces.
III. Equipment Features:
1. Full protection + automatic hoisting door
2. High-rigidity bed
3. Rigid direct-drive five-axis head + tool tip cooling
4. Explosion-proof dust removal, waste material collection
5. Customized tools
6. Automatic lubrication system, end detection
IV. Application Range:
◆Suitable for: three-dimensional processing of various materials such as carbon fiber, glass fiber, aluminum profiles, high-density foam, aramid/aluminum honeycomb, wood, and gypsum.
◆Widely used in: aerospace, wind power generation, rail transit, shipbuilding/yachting, non-metallic molds, automotive/new energy, etc.
◆Suitable for processing installation holes, water channels, keyholes, and shaped holes for thermoformed parts, injection-molded parts, non-plastic foamed materials, industrial profiles, and aluminum alloy profiles.
V. Technical Specifications:
| Number | Performance Index | Parameter | |
| 1 | Travel Range | X-axis travel | 2000/2500/3000/4000/5000㎜ |
| Y-axis travel | 2000/3000/4000/6000/8000/10000/15000㎜ | ||
| Z-axis travel | 1000/1100/1500/2000/2500㎜ | ||
| A-axis travel | ±120° | ||
| C-axis travel | ±360°/±540° | ||
| 2 | Dual-swing head assembly spindle | Milling spindle power | 10/15/20/22kw |
| Milling spindle speed | 1800/24000/36000/40000rpm | ||
| 3 | Operating voltage | 380±5%V/50±2%Hz | |
| 4 | Control system | SIEMENS/Domestic | |
| 5 | Tool magazine capacity | ≥8 pieces | |
