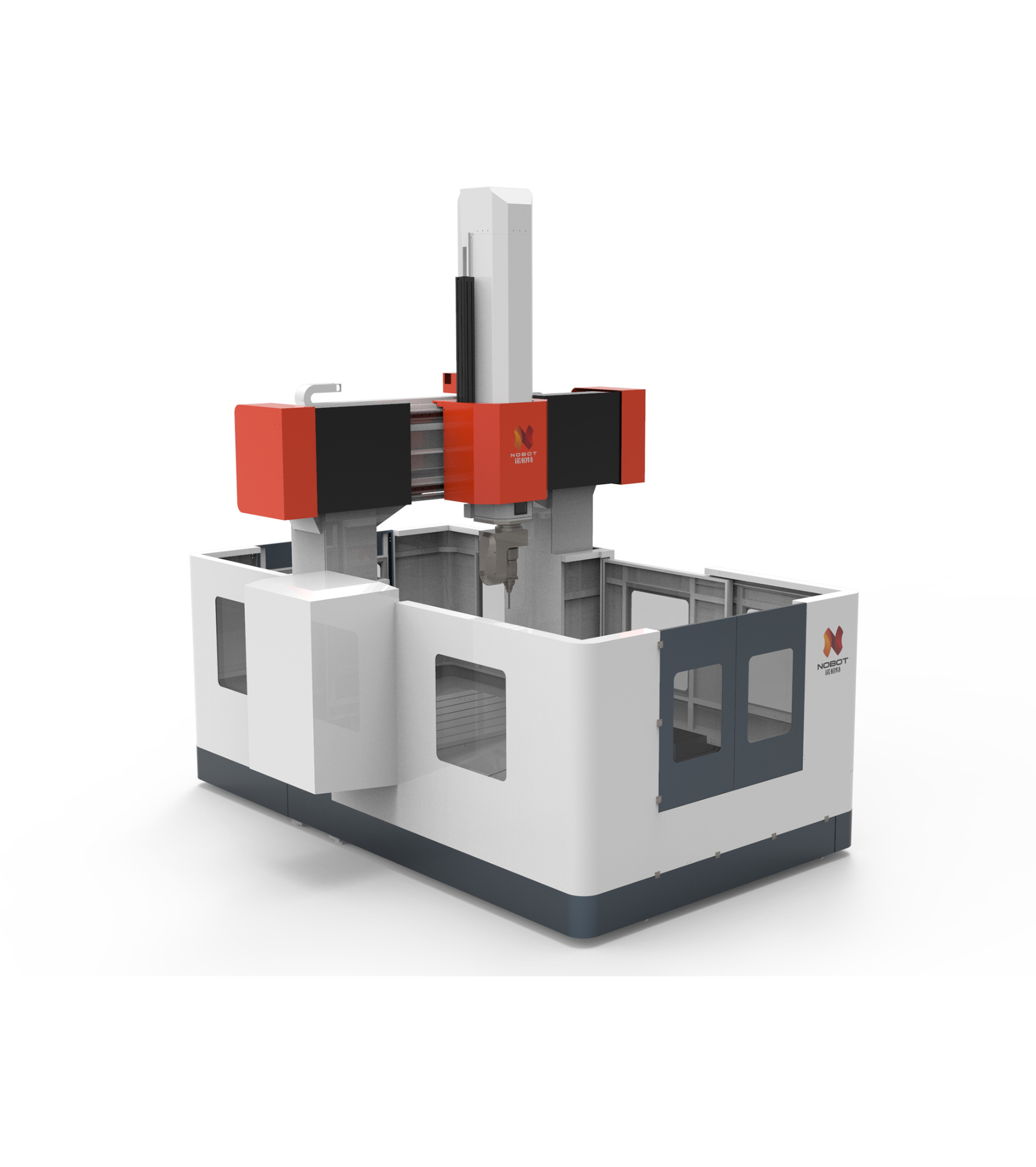

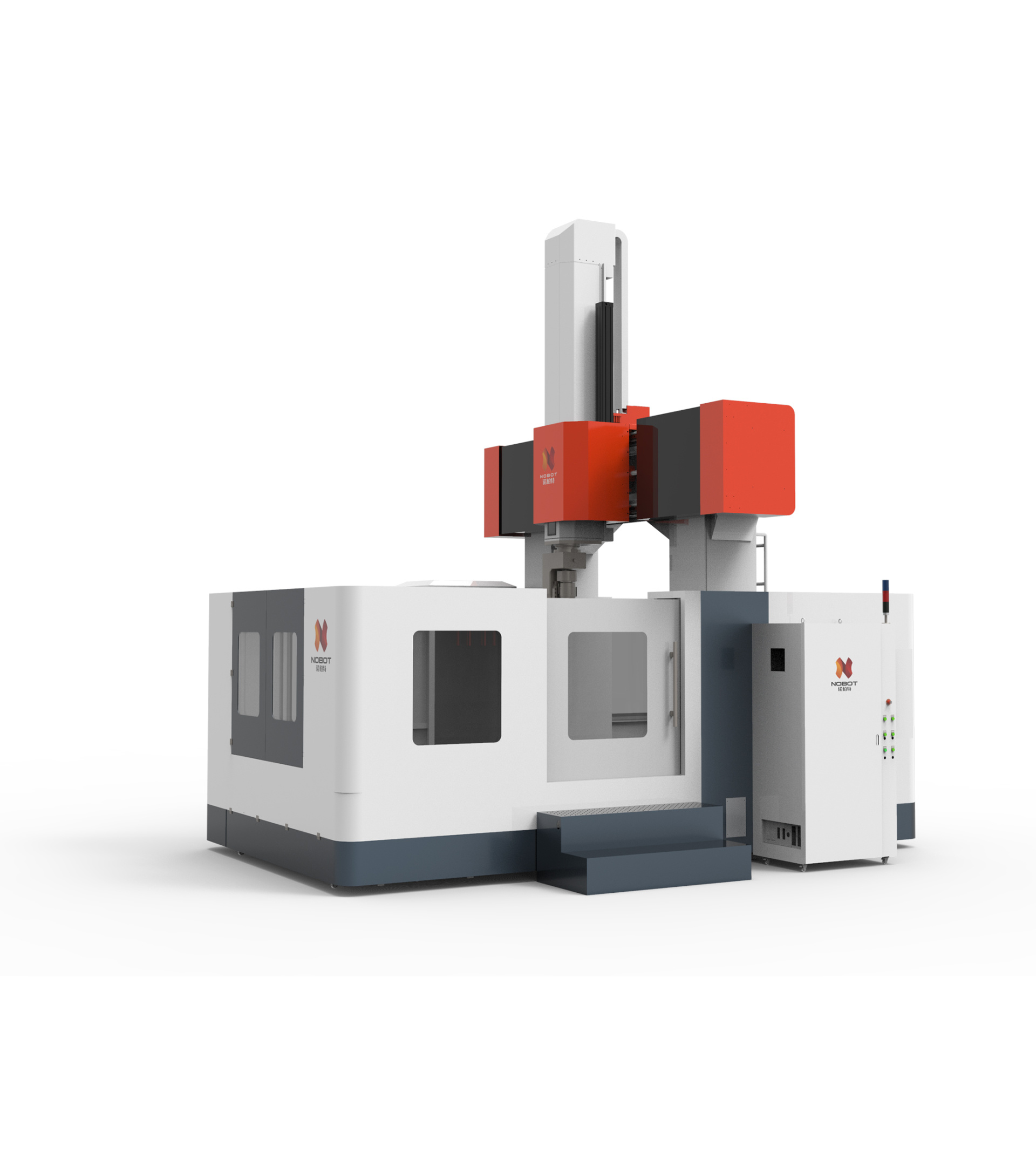

NBF series general-purpose five-axis machining center
Scope of application: ◆Applicable to the processing procedures of installation holes, water channels, keyholes, and shaped holes for non-plastic foamed materials such as thermoformed parts and injection-molded parts, industrial profiles, and aluminum alloy profiles.
Keywords:
Details Description
I. General Introduction:
The BFG series five-axis machining center adopts an advanced gantry-type mobile structure, possessing the excellent milling characteristics of a high-speed milling machine. The mobile worktable ensures the machine tool has optimal dynamic motion characteristics and drive rigidity. The worktable moves smoothly in the axial direction. During processing, the five axes drive the tool movement, machining around the workpiece to achieve five-axis linkage three-dimensional movement. The dual worktable allows for uninterrupted production processing, with one worktable being machined while the other is loaded.
II. Product Features:
◆This machine tool adopts a worktable-moving working method, with an integrated welded bed, compact structure, and advanced mechanical/electrical components, ensuring high processing feed speed, high processing efficiency, high rigidity, and high reliability.
◆It uses a five-axis linkage control system, enabling RTCP tool following function, allowing for one-time processing of multiple complex surfaces.
◆It uses an Italian-made electric spindle and an 8-station disc-type tool magazine.
◆Equipped with a tool measuring system for automatic measurement of tool length and precision recalibration of A/C coordinates.
III. Performance Characteristics:
1. Cast iron table, high-rigidity bed, supports heavy cutting;
2. Platform mobile, stable structure;
3. Easy operation
III. Application Range:
Suitable for: Precision milling of plastics, high-density foam, aluminum alloy, fiberglass, and glass fiber materials.
Widely used in: Thick-sheet thermoforming, automotive interior and exterior trim, sanitary ware, rail transit, aerospace, etc.
Suitable for processing installation holes, water channels, keyholes, and shaped holes in thermoformed parts, injection-molded parts, and other non-plastic foamed materials, industrial profiles, and aluminum alloy profiles.
IV. Technical Specifications:
| Number | Performance Indicators | Parameters | |
| 1 | Travel Range | X-axis travel | 2100mm |
| Y-axis travel | 1800/2600mm | ||
| Z-axis travel | 800mm | ||
| A-axis travel | ±110° | ||
| C-axis travel | ±360° | ||
| 2 | Dual-swing head assembly spindle | Milling spindle power | 17-22kw |
| Milling spindle speed | 24000rpm | ||
| 3 | Operating voltage | 380V/50Hz | |
| 4 | Control system | NOBOT/LYNUC/SYNTEC/SIEMENS 840D | |
| 5 | Tool magazine capacity | Optional | |
