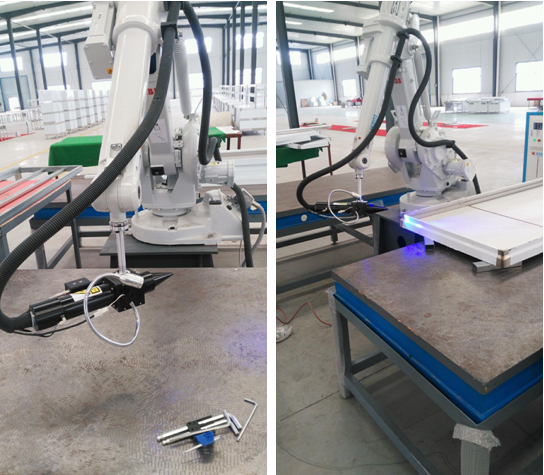

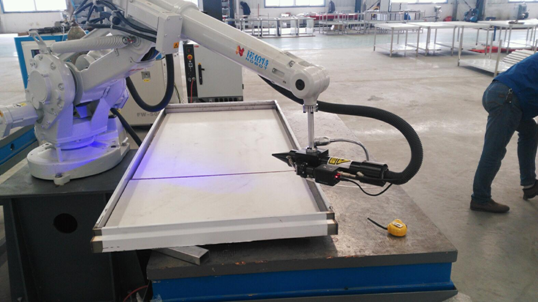

New material six-axis welding robot project

1. Project Introduction: A six-axis welding robot 2. Project Characteristics: (1) Exquisite structure design, few spare parts, low failure rate, high reliability, and convenient maintenance. (2) Automatic control, repeatable programming, all movements are operated according to the program. (3) Flexible, multifunctional, and can work for a long time. 3. Project Plan: Six-axis robot 4. Main Configuration: Rated load (KG): 5 Structure form: Serial Number of axes: 6 Repeatability (mm): 0.05 TCP maximum speed: 2.1m/s Ambient temperature: 5-45° relative

　　I. Project Introduction:
　　A six-axis welding robot
　　II. Project Characteristics:
　　(1) Exquisite structural design, few spare parts, low failure rate, high reliability, and convenient maintenance.
　　(2) Automatic control, repeatable programming, all movements are operated according to the program.
　　(3) Flexible, multifunctional, and capable of long-term operation.
　　III. Project Plan
Six-axis robot

Six-axis robot


IV. Main Configurations:



Rated Load (KG):

5

Structure Type:

Serial

Number of Axes:

6

Repeatability (mm):

0.05

TCP Maximum Speed

2.1m/s

Ambient Temperature:

5-45°

Relative Humidity:

Up to 95%

Protection Level:

Electrical equipment is IP54, mechanical equipment requires a dry environment

Noise Level:

Up to 70dB(A)

Radiation:

EMC/EMI Shielding

Clean Room:

Class 100, US Federal Standard 209e

Robot Base (mm):

620X450

Unit Weight (KG):

225

Installation Method:

Floor-standing

Rated Power (kVA):

4/7.8 (with external axis)

Power Supply:

200-600V 50/60Hz
